James Dewhurst manufacture a wide range of laid scrims. Laid scrims are exactly what they say: weft yarns are simply laid across a bottom warp sheet, then trapped with a top warp sheet. The whole structure is then coated with an adhesive to bond the warp and weft sheets together creating a robust construction. This is achieved through a manufacturing process, which was developed in house, that allows manufacture of wide width scrims at widths up to 5.2m, at high speed and excellent quality. The process is typically 10 to 15 times faster than the production rate of an equivalent woven scrim.
Dewtex
Dewtex™ is our market leading brand in laid scrims. This material offers low profile and low crimp performance.
- 100mm to 5300mm wide
- 76 Dtex polyester to 6000 Dtex glass
- 1 thread per 5cm to 5 threads per cm
- Roll lengths up to 150,000 linear metres
- Adhesive and adhesive weights tailored to customer application
Triatex

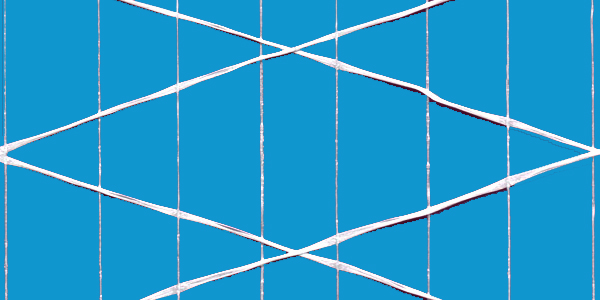

Triatex is our triaxial scrim, particularly suited to ducting and insulation, as well as packaging applications.
- 76mm to 3800mm wide
- 76 Dtex polyester to 2720 Dtex glass
- Up to 5 threads per cm
- Roll lengths up to 100,000 linear metres
- Adhesive and adhesive weights tailored to customer application
G-TEX

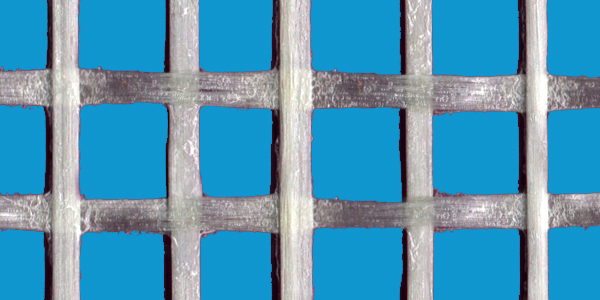

G-TEX is our new high density, high tenacity brand of laid scrims. Using high decitex yarns, it is extremely effective for reinforcing materials requiring high strength.
- High decitex yarns and rovings
- Width of up to 5.0 m
- Roll length starting at 100m
- Roll length starting at 100m
- Ultra high tensile strength and tear resistant products
Challenge Us To Find Your
Reinforcement Solution
At James Dewhurst, we take pride in our dedicated technical experience with woven, laid, and laminated textiles. It’s our job to work closely with our customers on a variety of new projects not only as suppliers, but as developers. This involves getting to know you and your project needs inside and out, so that we can dedicate ourselves to creating the ideal solution for you.
Do you have an idea or project in mind that James Dewhurst can bring to fruition? If so, we want to be your partner. Please contact a member of our team to find out more information.
